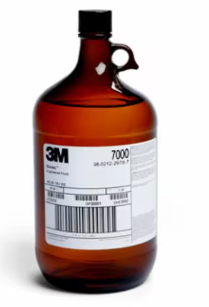

3M™ Novec™ 7000 Engineered Fluid
Details
Highlights
Low Global Warming Potential
Excellent dielectric properties
Non-ozone depleting
Low toxicity
Non-flammable
Non-corrosive
Good thermal stability
Useful at extreme low temperatures (to -120 Degree C)
Will not damage electronic equipment in event of leakage or other equipment failure
3M™ Novec™ 7000 Fluid unique properties make it useful as a low temperature, heat transfer fluid for cooling reactors in pharmaceutical & chemical processing. It's also ideal for low temperature automated test equipment & wafer processing equipment.
Additional Information 3M™ Novec™ 7000 Engineered Fluid is useful as a heat transfer liquid for cooling reactors in the pharmaceutical and chemical processing industries. In the semiconductor industry, it is ideal for automated test equipment (ATE) and wafer processing equipment which requires extreme low temperatures. It has also been used as an autocascade refrigerant. 3M™ Novec™ 7000 Engineered Fluid has a very low global warming potential (GWP) and offers reduced greenhouse gas emissions when compared to PFCs - without sacrificing performance.
Typical properties
Application | Deposition Solvent, Heat Transfer, Immersion Cooling for Data Centers, Lubricant Deposition |
Boiling Point (Celsius) | 34 ℃ |
Boiling Point (Fahrenheit) | 93 ℉ |
Boiling Point Range | 0 °C - 49 °C |
Brands | Novec™ |
Cleaning Strength | Light Duty |
Compatibility | Aluminum, Brass, Copper, Nylon, PEEK, PTFE, Polyacetyl, Polyethylene, Polypropylene, Stainless Steel |
Density | 1.4 g/cm³ |
Dielectric Strength Range | >25 kV |
Factory ISO Certification | No ISO Certification information available |
Fluorocarbon Solubility | Medium |
GWP (IPCC 2007) | 420 (100 yr ITH) |
GWP Range | Low |
Hydrocarbon Solubility | Medium |
Net Weight (Imperial) | 10 lb, 300 lb |
Net Weight (Metric) | 4.54 kg, 136 kg |
Plastic Elastomer Compatibility | Excellent |
Pour Point (Celsius) | -122 ℃ |
Pour Point (Fahrenheit) | -188 ℉ |
Product Series | Novec 7000 |
Purity Grade | Standard |
Replacement For | HCFC-123 |
Volume (Imperial) | 1 gal, 30 gal |
Volume (Metric) | 3.79 L, 113.56 L |
