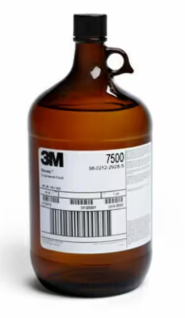

3M™ Novec™ 7500 Engineered Fluid
Details
Highlights
Wide range of thermal management applications
Wide liquid range
Non-flammable
Non-conductive
Compatible with plastics
Low toxicity
Low Global Warming Potential (GWP)
Zero ozone depletion potential
VOC-exempt solvent (US EPA)
3M™ Novec™ 7500 is a non-flammable fluid with a very low global warming potential (GWP.) Its' excellent inerting and dielectric properties make it a viable replacement for higher GWP fluids such as PFCs and PFPEs in a wide variety of applications.
3M™ Novec™ 7500 Engineered Fluid is useful as a heat transfer liquid for cooling reactors in the pharmaceutical and chemical processing industries. In the semiconductor industry, it is ideal for automated test equipment (ATE) and wafer processing equipment which requires extreme low temperatures. It has also been used as an autocascade refrigerant. 3M™ Novec™ 7500 Engineered Fluid has a very low Global Warming Potential (GWP) and offers reduced greenhouse gas emissions when compared to PFCs - without sacrificing performance.
Typical properties
Application | Aerosol Formulations, Deposition Solvent, Heat Transfer, Immersion Cooling for Data Centers, Lubricant Deposition, Semiconductor Cooling, Test Equipment |
Boiling Point (Celsius) | 128 ℃ |
Boiling Point (Fahrenheit) | 262 ℉ |
Boiling Point Range | 100 °C - 149 °C |
Brands | Novec™ |
Cleaning Strength | Light Duty |
Density | 1.614 g/cm³ |
Dielectric Strength Range | >25 kV |
Factory ISO Certification | No ISO Certification information available |
Fluorocarbon Solubility | High |
GWP (IPCC 2007) | 100 (100 yr ITH) |
GWP Range | Very Low |
Hydrocarbon Solubility | Medium |
Maximum Use Temperature (Celsius) | 149 ℃ |
Maximum Use Temperature (Fahrenheit) | 300.2 ℉ |
Net Weight (Imperial) | 12 lb, 40 lb, 600 lb |
Net Weight (Metric) | 5.44 kg, 18.14 kg, 272.15 kg |
Plastic Elastomer Compatibility | Excellent |
Pour Point (Celsius) | -100 ℃ |
Pour Point (Fahrenheit) | -148 ℉ |
Product Series | Novec 7500 |
Purity Grade | Standard |
Replacement For | PFCs |
Volume (Imperial) | 1 gal, 3.25 gal, 55 gal |
Volume (Metric) | 3.79 L, 12.3 L, 208.2 L |
