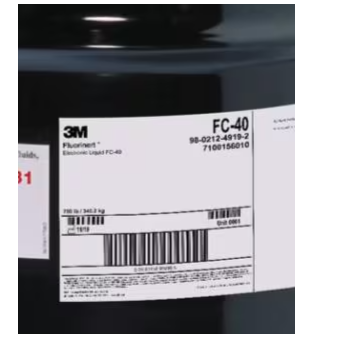

3M™ Fluorinert™ Electronic Liquid FC-40
Details
Highlights
Thermal stability
Chemical stability
Wide liquid range
Non-conductive
Narrow boiling range
Compatibility
3M™ Fluorinert™ Liquid FC-40 is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.
Additional Information Clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications. Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because FC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.
Suggested applications
Typical properties
Application | Dielectric Bath, Electronic Testing, Gross Leak Testing, Heat Transfer, Semiconductor Cooling, Thermal Shock Testing |
Boiling Point (Celsius) | 165 ℃ |
Boiling Point (Fahrenheit) | 329 ℉ |
Boiling Point Range | 150 °C - 200 °C |
Brands | Fluorinert™ |
Compatibility | Metal, Plastic |
Density | 1.85 g/cm³ |
Dielectric Strength Range | >40 kV |
Factory ISO Certification | No ISO Certification information available |
Fluorocarbon Solubility | Very High |
GWP (IPCC 2007) | >5000 (100 yr ITH) |
GWP Range | High |
Hydrocarbon Solubility | Low |
Maximum Use Temperature (Celsius) | 165 ℃ |
Maximum Use Temperature (Fahrenheit) | 329 ℉ |
Net Weight (Imperial) | 11.02 lb, 44 lb, 750 lb |
Net Weight (Metric) | 5 kg, 20 kg, 340 kg |
Plastic Elastomer Compatibility | Excellent |
Pour Point (Celsius) | -57 ℃ |
Pour Point (Fahrenheit) | -71 ℉ |
Product Series | FC-40 |
Purity Grade | Standard |
Volume (Imperial) | 0.75 gal, 3 gal, 3.25 gal |
Volume (Metric) | 2.84 L, 12.303 L, 13.638 L |
