EnaSolv HTF-124 Solvent
Product Description
Enasolv HTF-124 is a non flammable and environmentally friendly fluorinated heat transfer solution with appropriate boiling point, low pour point, and low viscosity. It has a very wide range of environmental temperature adaptability and is suitable for immersion cooling and liquid cooling plate applications.

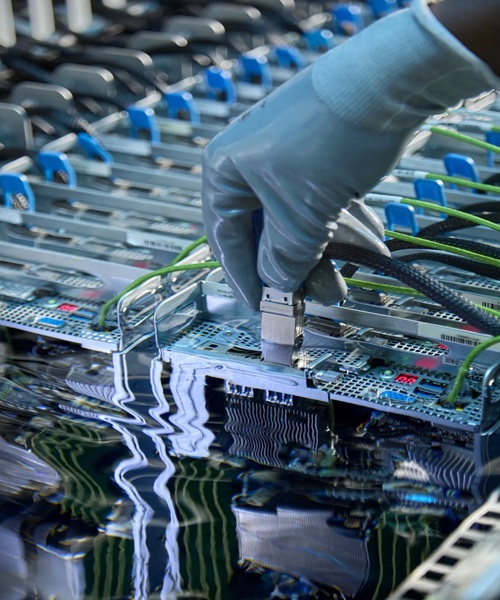

Enasolv HTF-124 has excellent electrical performance, high breakdown voltage, and high-volume resistivity, making it suitable for fully immersed cooling of functional modules such as data centers and IGBTs, as well as heat transfer media for cooling plates and large equipment.
Enasolv HTF-124 has excellent thermochemical stability and good material compatibility. There is no reaction or residue with the plastic parts and electronic metal materials in contact. Low viscosity, the circulation pump will not be unable to operate effectively due to low ambient temperature.
| |
| HTF-124 | FC-3283 | FC-40 | HT135 | SF-10 |
Boiling Point | °C | 124 | 128 | 155 | 135 | 110 |
Melting Point | °C | -82 | -50 | -57 | -100 | <90 |
Specific Gravity | g/ | 1.86 | 1.83 | 1.87 | 1.72 | 1.58 |
Viscosity | cSt | 1.38 | 0.82 | 2.2 | 1.00 | 0.71 |
Vapor Pressure | torr | 11.4 | 9.98 | 3 | 5.8 | 0.22 |
Specific heat | cal/g·°C | 0.26 | 0.25 | 0.25 | 0.23 | 0.24 |
Heat of vaporization | cal/g | 20 | 20 | 17 | 16 | 27 |
Surface Tension | dyne/cm | 16 | 16 | 16 | 17 | 18 |
Thermal conductivity | W/m·K | 0.061 | 0.067 | 0.067* | 0.065 | 0.065 |
Dielectric strength | kV(2.54mm gap) | >35 | 43 | 46 | 40 |
|
Dielectric constant | - | 2.9 | 1.91 | 1.89 | 1.92 | 5.48 |
Volume resistivity | Ohm·cm | ≥1.0·1015 | 1.0·1014 | 4.0·1013 | 1.5·1015 | 10 9-10 |
Features and Benefits
ü Non flash point
ü Excellent heat dissipation performance
ü Can be recycled and reusable
ü RoHS compliant
ü Not SVHC
ü Not a Hazardous Air Pollutant (HAP)
ü Zero Ozone Depleting Potential
ü Very low Global Warming Potential
Typical Applications
Ø Thermal conduction fluid
Ø Dilute solvent
Ø Medium carrier
Ø Anti fingerprint oil
Ø Synthesis intermediates
Ø Precision cleaning
Properties

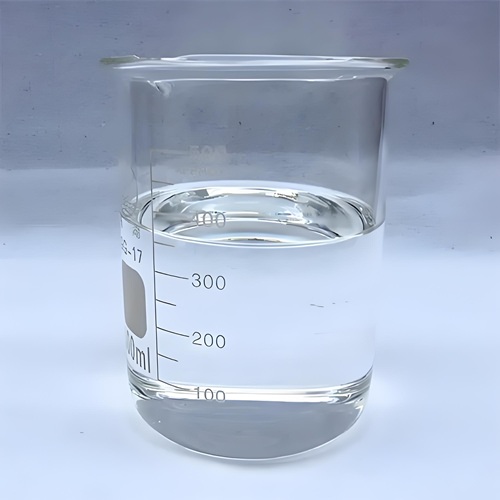

Appearance Clear liquid with mild odor
Flash Point None
Boiling Point 125°C
Melting Point -82°C
Specific Gravity (25°C) 1.86
critical temperature 196°C
critical pressure 4.28Mpa
Vapor Pressure (20°C) 1.52kPa@ 20°C
Heat of vaporization 8.3KJ/Kg
Thermal conductivity 0.061 W/m∙K
Specific heat 1.107KJ/Kg. ° C
Viscosity (25°C) 1.38mm2∙s-1
Surface Tension 15.7mN∙m-1
Electrical performance parameters:
Dielectric strength (2.5 mm) >35kV
Dielectric constant（1MHz） 2.9*10-4
Volume resistivity (25 ℃) ≥1*1015Ω∙mm
Shelf Life
The shelf life for this product is twenty-four (24) months when it is stored in its original, sealed container at room temperature.
Environmental/Regulatory
Ozone Depletion Potential (ODP) Zero
Global Warming Potential (GWP) 108
Disposal/Safety
Disposal: Recommend contacting your current or local environmental service company for disposal of this product.
Safety: Please see Material Safety Data Sheet for further information.

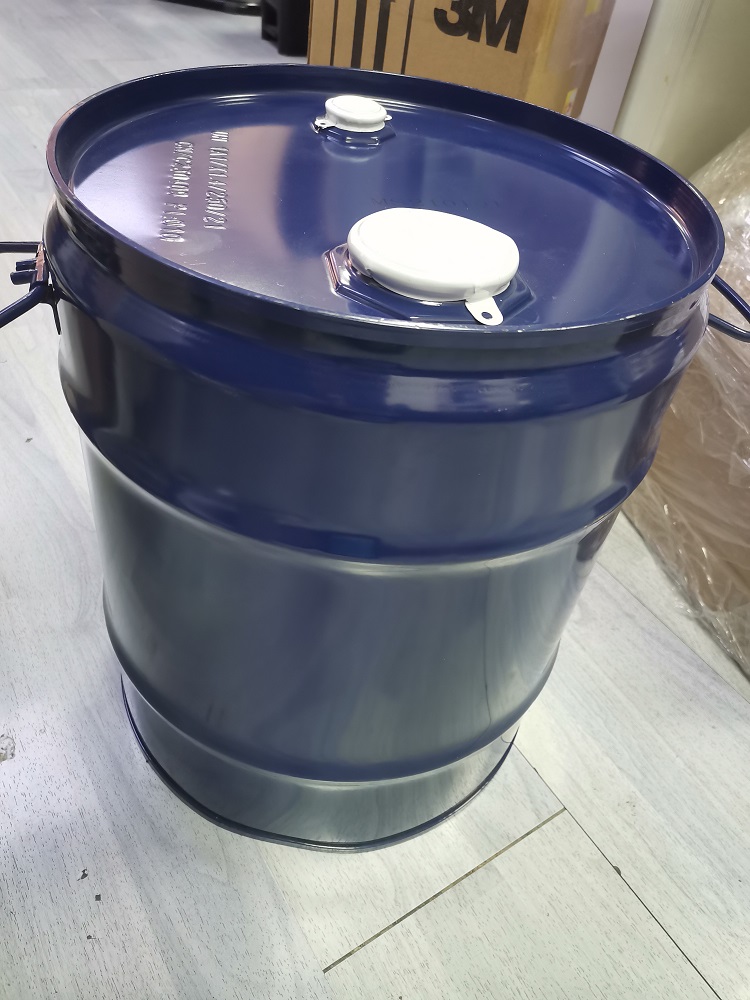

Packaging: Enasolv HTF-124 is available in 25 kg pails and 250Kg drums.
